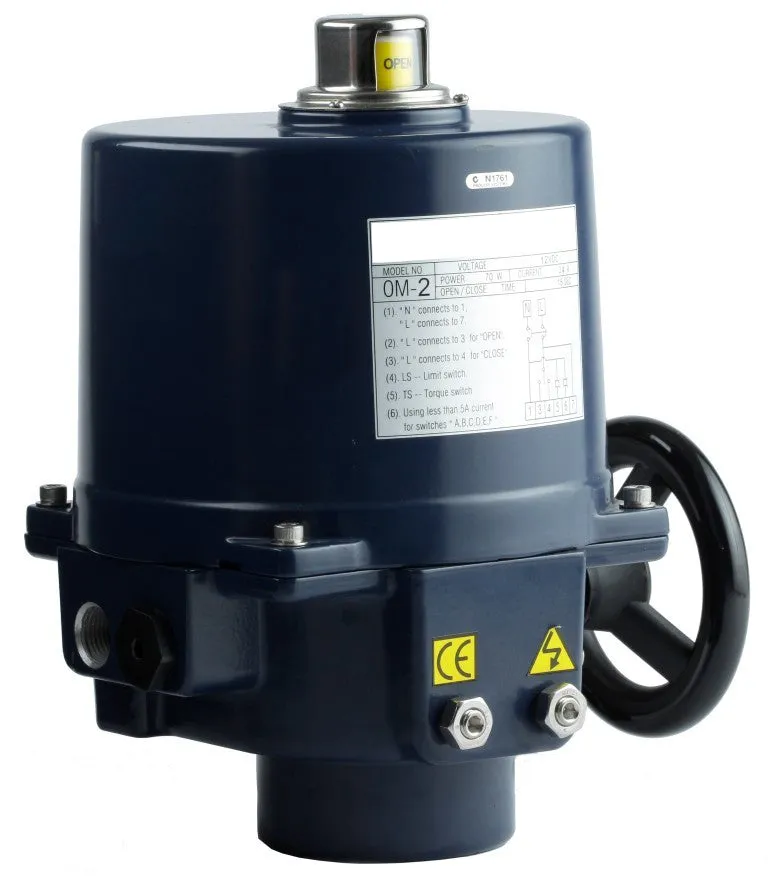

GO 0M Double Acting Electric Actuator 12v DC

Overview

The 0M series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a powder coated die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). All models have visual indicator, extra limit switches and a manual override. Duty cycle is 30% to 75% depending on ambient temperature, voltage and actuator model, and relates to the 135°C thermal motor protection.
